Product Title:

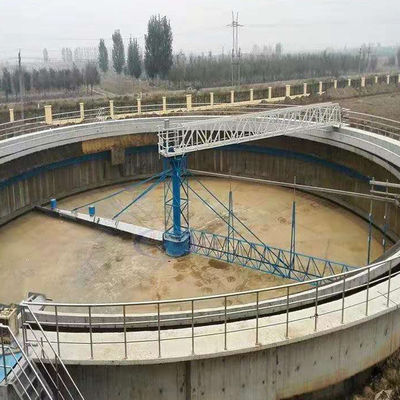

ZCX Series Center-Driven Single Pipe Sludge Scraper for Secondary Sedimentation Tanks
To Our Customers:
We specialize in the production of high-quality treatment equipment for the petrochemical industry, municipal water services, urban and industrial wastewater treatment, domestic sewage treatment, pure water and reverse osmosis systems, water purification, and exhaust pollution control.
Application
This system is designed for large and medium-sized sedimentation tanks featuring peripheral water inflow and outflow with central sludge discharge. It is ideally used for suction and removal of settled sludge in secondary sedimentation tanks at municipal wastewater treatment plants.
Technical Parameters
| Model Number | ZCX-25 | ZCX-30 | ZCX-35 | ZCX-40 | ZCX-45 | ZCX-50 |
|---|---|---|---|---|---|---|
| Tank Diameter Φ (m) | 25 | 30 | 35 | 40 | 45 | 50 |
| Deep Tank Depth H (m) | 4.0–5.5 (Customizable) | |||||
| Side Water Depth H1 (m) | 3.5–5.0 (Customizable) | |||||
| Outer Edge Line Speed V (m/min) | 2.0–3.0 | |||||
| Motor Power N (kW) | 0.5 | 0.55 | 0.75 | 1.1 | 1.1 | 1.1 |
| Central Column Load P1 (kN) | 65 | 70 | 90 | 98 | 120 | 155 |
| Working Bridge Load P2 (kN) | 6.5 | 7.2 | 9.5 | 10.0 | 13.5 | 17 |
| Max. Operating Torque M (N·m) | 140 | 168 | 268 | 448 | 505 | 560 |
Note: Installation dimensions (B, Φ1, Φ2, B1, H3, L) are customizable according to user requirements.
Key Features
Uniform Flow Distribution: The peripheral inlet and outlet troughs are designed with side sections to ensure even water distribution and outflow.
Robust Drive System: Utilizes a combination of helical and worm gear reducers to guarantee optimal torque and speed output, equipped with overload protection for safe and reliable operation.
Adaptable Scraper Configuration: Employs a single-sided scraper for tanks ≤40m and double-sided for tanks >40m.
Non-Disruptive Sludge Removal: A horizontally perforated sludge discharge pipe prevents disturbance of density currents, maintaining hydraulic stability.
Optimized Sludge Extraction: The uniquely designed tapered suction pipe features a variable hole pitch (increasing outward) to ensure balanced suction across the tank floor, improving sludge concentration and reducing reflux power requirements.
Flexible Skimming Options: Offers both plate skimming (standard) and tube skimming methods.
Ease of Operation: Supports both local and remote control for convenient operation and monitoring.

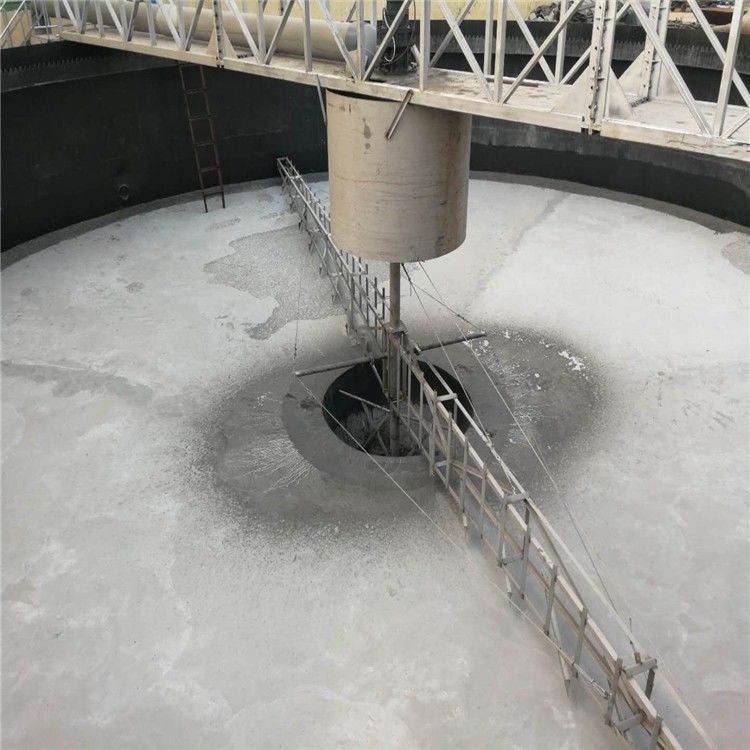

Structure and Working Principle
The system features a center-driven, vertical-frame design. Wastewater enters through a peripheral distribution tank and flows uniformly into the sedimentation tank via bottom openings. A retaining skirt guides the flow from the tank periphery toward the center, allowing sludge to settle by gravity and form a distinct separation layer.
The drive unit rotates the central vertical frame, which in turn moves the scraper arms and suction pipe assembly. Sludge enters the suction ports under hydrostatic pressure and is discharged through a central pipe regulated by a sleeve valve for flow control.
Floating scum is directed by a skimmer to the pool edge, where it is raked into a scum trough for removal. The clarified supernatant flows over a triangular weir into the outlet channel.
Outline and Installation Chart
1. Working Bridge 2. Skimmer board 3.Scraping arm 4.Central mud tank 5.Drive device 6.Center column 7.Center rotation vertical stand
8.Scum baffle, 9.suction pipe, 10. water outlet weir, 11. water retaining skirtboard, 12.counterweight
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
About Us
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.
The main products include mechanical bar screen, air flotation device, dosing device, mud scraper, cooling tower, decanter, chemical degreasing device, hydraulic screen, sand water separator, filter, conveyor, thickener , Biological filter, softened water, buried sewage treatment equipment, etc.
FAQ:
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
