NL Series Chain Flight Sludge Scraper System – High-Efficiency Scum and Residue Removal for Water Treatment Tanks
To Our Valued Customers,
We specialize in the manufacturing of a wide range of wastewater treatment equipment. Should you have any inquiries, please do not hesitate to contact us. Thank you.
Structure and Working Principle

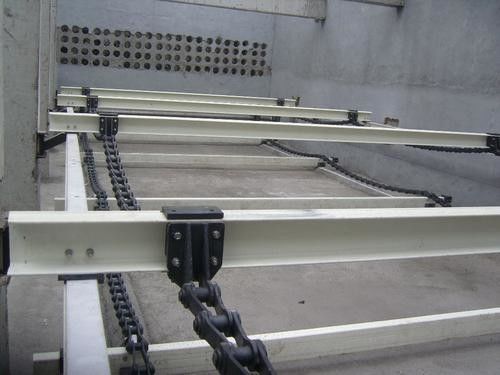

The NL-type chain flight sludge and scum scraper system consists of a drive unit, drive sprocket assembly, guide rail and carriage, scraper flights, driven sprocket assembly, chain tensioning mechanism, sludge collection pipe, and other key components.
During operation, the chain drives the scraper flights in a continuous loop along the tank. The flights move settled sludge toward the sludge hopper for collection, while simultaneously removing floating scum or oil from the water surface.
Technical Parameters
| Model | NL-3xL | NL-4.5xL | NL-5xL | NL-6xL |
|---|---|---|---|---|
| Tank Width B (m) | 3 | 4.5 | 5 | 6 |
| Tank Length L (m) | 8~16 | 8~16 | 8~16 | 8~16 |
| Tank Depth H (m) | 3.5 | 3.5 | 3.5 | 3.5 |
| Drive Power (kW) | 2.2 | 2.2 | 2.2 | 3 |
| Scraper Speed (m/min) | 1 | 1 | 1 | 1 |
| Scraper Spacing (m) | 2 | 2 | 2 | 2 |
| Max. Influent Turbidity (mg/L) | ≤500 | ≤500 | ≤500 | ≤500 |
Key Features
Over-Torque Protection: Automatically cuts power and triggers an alarm in case of jammed scrapers due to debris or excessive sludge.
Smooth Operation: Minimizes disturbance of settled sludge, ensuring efficient separation and collection.
Compact Integrated Design: Combines sludge and scum removal functions in a single unit, saving space and simplifying structure.
Easy Maintenance: The drive unit is mounted poolside for straightforward access and service.
