Farm Manure Sludge Dewatering Equipment | 20m³/H Screw Press System

20m³/H Spiral Sludge Dewatering Machine for Farm Manure Treatment

This equipment is specifically designed for efficient sludge dewatering, capable of reducing the moisture content of sludge to 75%–85%. The integrated stacked spiral sludge dewatering system combines a fully automatic control cabinet, flocculation conditioning tank, sludge thickening and dewatering unit, and filtrate collection tank. It enables highly efficient flocculation through fully automated operation and continuously completes sludge thickening and mechanical dewatering. The treated filtrate can be safely discharged or returned for further processing.

Working Principle
During operation, sludge enters the filtration cylinder through the feed inlet and is conveyed forward by rotating spiral blades. As the pitch of the spiral blades gradually decreases, mechanical pressure on the sludge increases, progressively squeezing out moisture. The separated water is discharged through the gaps between the fixed and moving rings. Simultaneously, the self-cleaning function between these rings prevents clogging and ensures uninterrupted operation. Finally, the dewatered sludge cake is discharged through the outlet.

Applications

• Municipal wastewater treatment

• Papermaking wastewater

• Chemical industry wastewater

• Food and beverage processing wastewater

• Industrial production effluent

• Petroleum processing and mining wastewater

• Agricultural and farm manure management

Parameters

Specification and dimension Model		DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Handling capacity (m3／h)	Ind concentration S．S．0.2～0.5％)	0.6~1.5	1.2~3.0	1.8~4.5	3.6~9.0	6.0~15	12~30	18~45
	Ind concentration (S．S．0.5～2.0％)	0.25~0.6	0.5~1.2	0.75~1.8	1.5~3.6	2.5~6.0	5.0~12	7.5~18
	Ind concentration (S．S．2.0～5.0％)	0.1~0.25	0.2~0.5	0.3~0.75	0.6~1.5	1.0~2.5	2.0~5.0	3.0~7.5
Exdry amount (kg／h)	Ind concentration (S．S．0.2～0.5％)	0~3.0	2.4~6.0	3.6~9.0	7.2~18	12~30	24~60	36~90
	Ind concentration (S．S．0.5～2.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
	Ind concentration (S．S．2.0～5.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
Water content of mud cake (％)		75~85	75~85	75~85	75~85	75~85	75~85	75~85
Spirical Didiameter (mm)x Quantity (root)		100x1	100x2	200x1	200x2	300x1	300x2	300x3
Power (KW)		0.2	0.3	0.6	0.8	0.8	1.2	1.95
contour size of the unit(s) (ww)	L	1816	1816	2500	2500	3255	3455	3605
	W	756	910	850	935	985	1295	1690
	H	1040	1040	1270	1270	1600	1600	1600
Reference Weight(kg)		190	275	360	470	820	1350	1820

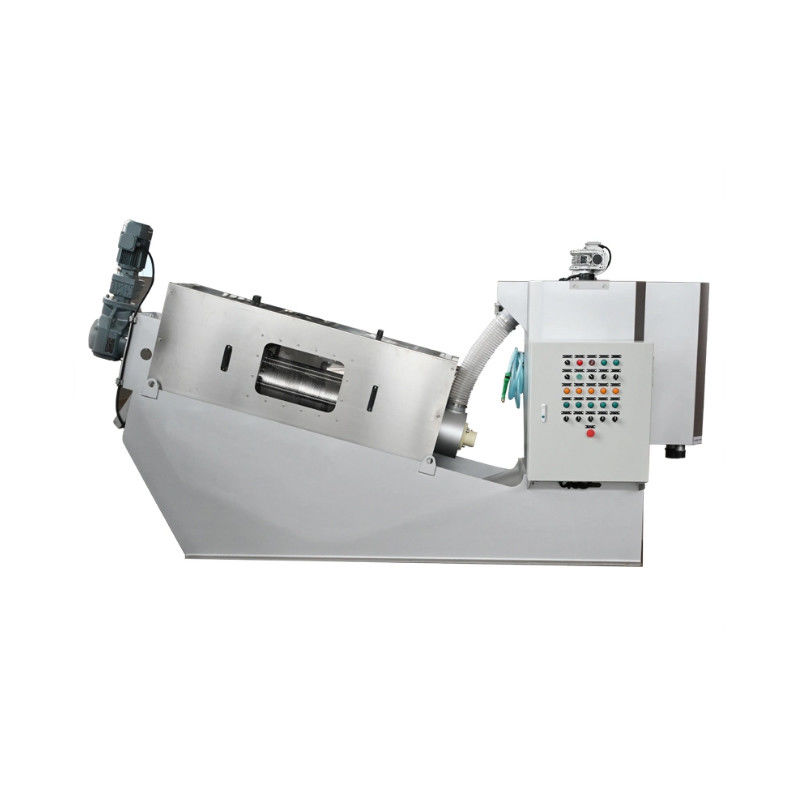

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.



Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
